[分享] 西门子 手机当MODEM 连电脑 GPRS/EDGE上网大全

[复制链接]
ericfly
发表于 2007-7-10 23:00:33 | 显示全部楼层 |阅读模式

马上注册，结交更多好友，享用更多功能，让你轻松玩转社区。

您需要 登录 才可以下载或查看，没有帐号？注册会员 微信登录

x
我知道 可能有人写过的

但是写也分好坏和不同的，所以我再写

先写 DCA140/DCA 540 不刷机线 的用法

下文  可以涵盖  C65，CX65，M65，S65，C75。。。。。S75（这些用DCA540），EL71，S68，M81，E71等（这些用DCA140）
DCA140和DCA540本来就是 个 USB转接线而已。。没什么本质区别
回复

使用道具 举报

ericfly
 楼主| 发表于 2007-7-10 23:01:06 | 显示全部楼层
预备知识

    了解CMWAP和CMNET的区别,CMNET是直接可以浏览INTERNET的GPRS接入方式,价格较贵，速度相对快一点;CMWAP是接入WAP的GPRS接入方式,不能直接接入INTERNET,全国各地均有10-20元的包月不限量套餐,我们可以使用10.0.0.172:80做代理让CMWAP可以访问INTERNET.笔者使用CMWAP包月已经1年多了,只要设置得当,使用小心,每月就是20元包月费!

    警告：使用手机做猫，通常500M-800M的流量 是很快就会没的，如果你不是 无限流量包月，请谨慎进行，还有 分清CMNET和CMWAP的不同费用，包月一般都是包CMWAP的。

    现在 EDGE火热建设中，实际速度能到 10-20K，确实对浏览网页来说 已经不慢了。。所以现在说这个 很有意义！

    如果 你只是偶尔上网，确实 可以 考虑此方法。。。或者 移动中，出差什么的，能有网上也不错。

    EDGE：Enhanced Data Rate for GSM Evolution 你可以理解为 增强型GPRS，如果网络支持，手机支持 比如（E71，EL71，M81）信号处显示EDGE，那么恭喜你。。

    以下其实也 适用于西门子65/75系列，只是数据线换成DCA540。

    最简单的方法是 用西门子 官方 MPM来做这个，MPM提供 GPRS助理就 是这个功能

　　但是 越往后 MPM越不好，从 叫BENQ-SIEMENS开始。。

　　所以还是 自己 建立个 拨号连接比较方便

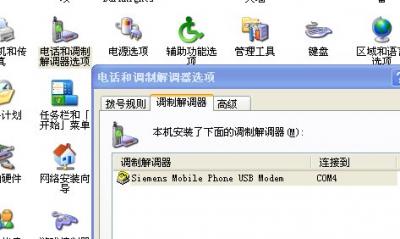

　　第1，先安装好 DCA540 或 DCA140的驱动，其实 是同一个，西门子手机的驱动，也叫西门子调制解调器 驱动


　　安装好后 如图

[ 本帖最后由 ericfly 于 2008-4-3 00:38 编辑 ]

SIEMENS MOBILE PHONE USB MODEM驱动.rar

59.6 KB, 下载次数: 174

540、140线的驱动实际上也可以说是西门子手机的驱动
回复 支持 反对

使用道具 举报

ericfly
 楼主| 发表于 2007-7-10 23:01:40 | 显示全部楼层
开始配制 MODEM    MODEN的属性 页端口速度改成最高 460800，如果不改对于GPRS来说 默认的115200还是够的，对于EDGE已经 大于115200 了，所以必须改



登录/注册后可看大图

高级 这边 需要在 额外初始化命令添加 at+cgdc CMWAP很 重要
    就是代表 拨号的APN　如果写成 CMNET，那么 也许很倒霉，不过近来 好多地方 不分 CMNET和CMWAP了


登录/注册后可看大图






MODEM配制完成    接下来 去 网上邻居-连接 建立个连接


登录/注册后可看大图

  号码为 *99***1#
    用户名和 口令都 留空


登录/注册后可看大图



此连接的属性


登录/注册后可看大图


然后 就可以拨号了
    如果能这样 那么 就OK了


登录/注册后可看大图

这个是端口速度
    没那么神奇的
    如果你的是GPRS那么　等下你就能用到　3-6K/S的爬行速度
　　如果是EDGE那么是　10-20K的速度 这个还可以的    然后 开 浏览器
    推荐 FIREFOX或 opera
    通常都是到 浏览器 彩蛋的 设置 网络-代理服务器去 设置 10.0.0.172 端口 80的代理
    就可以 浏览网页了
    限制很多 ，比如 到本坛来 就 回不了贴，只能看


登录/注册后可看大图


你 可以 先不设置 代理
    如果你的额外 初始化命令填的是CMNET那么是不用代理的,这个也能检测你到底是用CMWAP还是CMNET，用CMNET则不用代理就能打开，用了代理反而不能打开。。用CMWAP反之。。。
    刷新下网页，建议 GOOGLE，流量小
    在不设置 代理能打开 就是 CMNET 。。要小心
    设置过代理才能打开 就是 CMWAP了
    这个是 很多地方有的 移动 吓唬你的页面


登录/注册后可看大图

其实本文 是种方法，我稍加 改动 换用 别的数据线，配制稍变 就能 包含西门子从6618/3618开始的所有手机    同理，别的品牌手机 或者 用红外连接用蓝呀连接都是这个思路。
    OVER

[ 本帖最后由 ericfly 于 2008-4-3 00:22 编辑 ]
回复 支持 反对

使用道具 举报

ericfly
 楼主| 发表于 2007-7-10 23:02:00 | 显示全部楼层
预留:Q :Q
回复 支持 反对

使用道具 举报

ericfly
 楼主| 发表于 2007-7-10 23:02:23 | 显示全部楼层
预留:$ :$
回复 支持 反对

使用道具 举报

ericfly
 楼主| 发表于 2007-7-10 23:03:44 | 显示全部楼层
图片库

[ 本帖最后由 ericfly 于 2008-4-3 00:13 编辑 ]
回复 支持 反对

使用道具 举报

卖身葬自己了
发表于 2007-7-10 23:08:28 | 显示全部楼层
抢~~~~


预留招商ing。。。。
回复 支持 反对

使用道具 举报

Teenching
发表于 2007-7-11 00:22:46 | 显示全部楼层
明天上来学~~
回复 支持 反对

使用道具 举报

优雅比干
发表于 2007-7-29 01:04:36 | 显示全部楼层
这个也是研究了很久……据说西客有不用装MPM的驱动……
回复 支持 反对

使用道具 举报

test-8
发表于 2007-7-29 08:10:41 | 显示全部楼层
不知用蓝牙行不行的
回复 支持 反对

使用道具 举报

没有壳的蜗牛
发表于 2007-7-29 09:14:38 | 显示全部楼层
用蓝牙不行么
回复 支持 反对

使用道具 举报

ataehee
发表于 2007-7-29 14:57:21 | 显示全部楼层
贴个驱动

国外网络上找的

我用510的线测试通过

机器是C75 22版

BTW：驱动复制到记事本里

然后把txt的后缀改为inf的就可以了。

  1. ; Windows Modem Setup File

  3. [Version]
  4. Signature="$CHICAGO$"
  5. Class=Modem
  6. ClassGUID={4D36E96D-E325-11CE-BFC1-08002BE10318}
  7. Provider=%Mfg%

  9. [Manufacturer]
  10. %Mfg% =MobileAction

  12. [MobileAction]
  13. %Modem1% = Modem1, SIEMENS_Modem_GPRS

  15. [Strings]
  16. Mfg ="Mobile Action"
  17. Modem1 ="SIEMENS GPRS Modem"

  19. [Modem1]
  20. AddReg=All, MfgAddReg, Modem1.AddReg, EXTERNAL

  22. [All]
  23. HKR,,FriendlyDriver,,Unimodem.vxd
  24. HKR,,DevLoader,,*vcomm
  25. HKR,,ConfigDialog,,modemui.dll
  26. HKR,,EnumPropPages,,"modemui.dll,EnumPropPages"
  27. HKR,,PortSubClass, 1,02
  28. HKR, Init, 1,, "AT<cr>"

  30. [EXTERNAL]
  31. HKR,, DeviceType, 1, 01

  33. ; Rate: 115200 HW flow control, 1 stop bit
  34. [Modem1.AddReg]
  35. HKR,, Properties, 1, 00,00,00,00, 00,00,00,00, 00,00,00,00, 00,00,00,00, 00,00,00,00, 10,00,00,00, 00,c2,01,00, 00,c2,01,00
  36. HKR,, DCB, 1, 1C,00,00,00, 00,c2,01,00, 15,20,00,00, 00,00, 0a,00, 0a,00, 08, 00, 00, 11, 13, 00, 00, 00

  38. [MfgAddReg]
  39. HKR, Init, 2,, "ATE0<cr>"
  40. HKR, Monitor, 1,, "None"
  41. HKR, Monitor, 2,, "None"
  42. HKR, Answer, 1,, "ATA<cr>"
  43. HKR, Hangup, 1,, "+++ATH<cr>"
  44. HKR,, Reset,, "AT<cr>"
  45. HKR, Settings, Prefix,, "AT"
  46. HKR, Settings, Terminator,, "<cr>"
  47. HKR, Settings, DialPrefix,, "D"
  48. HKR, Settings, Pulse,, "P"
  49. HKR, Responses, "<cr>", 1, 01, 00, 00,00,00,00, 00,00,00,00
  50. HKR, Responses, "<lf>", 1, 01, 00, 00,00,00,00, 00,00,00,00
  51. HKR, Responses, "<cr><lf>OK<cr><lf>", 1, 00, 00, 00,00,00,00, 00,00,00,00
  52. HKR, Responses, "<cr><lf>RING<cr><lf>", 1, 08, 00, 00,00,00,00, 00,00,00,00
  53. HKR, Responses, "<cr><lf>NO CARRIER<cr><lf>", 1, 04, 00, 00,00,00,00, 00,00,00,00
  54. HKR, Responses, "<cr><lf>ERROR<cr><lf>", 1, 03, 00, 00,00,00,00, 00,00,00,00
  55. HKR, Responses, "<cr><lf>NO DIALTONE<cr><lf>", 1, 05, 00, 00,00,00,00, 00,00,00,00
  56. HKR, Responses, "<cr><lf>BUSY<cr><lf>", 1, 06, 00, 00,00,00,00, 00,00,00,00
  57. HKR, Responses, "<cr><lf>NO ANSWER<cr><lf>", 1, 07, 00, 00,00,00,00, 00,00,00,00
  58. HKR, Responses, "<cr><lf>CONNECT<cr><lf>", 1, 02, 00, 00,00,00,00, 00,00,00,00
  59. HKR, Responses, "0<cr>", 1, 00, 00, 00,00,00,00, 00,00,00,00 ; OK
  60. HKR, Responses, "2<cr>", 1, 08, 00, 00,00,00,00, 00,00,00,00 ; RING
  61. HKR, Responses, "3<cr>", 1, 04, 00, 00,00,00,00, 00,00,00,00 ; NO CARRIER
  62. HKR, Responses, "4<cr>", 1, 03, 00, 00,00,00,00, 00,00,00,00 ; ERROR
  63. HKR, Responses, "6<cr>", 1, 05, 00, 00,00,00,00, 00,00,00,00 ; NO DIALTONE
  64. HKR, Responses, "7<cr>", 1, 06, 00, 00,00,00,00, 00,00,00,00 ; BUSY
  65. HKR, Responses, "8<cr>", 1, 07, 00, 00,00,00,00, 00,00,00,00 ; NO ANSWER
  66. HKR, Responses, "OK", 1, 00, 00, 00,00,00,00, 00,00,00,00
  67. HKR, Responses, "RING", 1, 08, 00, 00,00,00,00, 00,00,00,00
  68. HKR, Responses, "NO CARRIER", 1, 04, 00, 00,00,00,00, 00,00,00,00
  69. HKR, Responses, "ERROR", 1, 03, 00, 00,00,00,00, 00,00,00,00
  70. HKR, Responses, "NO DIALTONE", 1, 05, 00, 00,00,00,00, 00,00,00,00
  71. HKR, Responses, "NO DIAL TONE",1, 05, 00, 00,00,00,00, 00,00,00,00
  72. HKR, Responses, "BUSY", 1, 06, 00, 00,00,00,00, 00,00,00,00
  73. HKR, Responses, "NO ANSWER", 1, 07, 00, 00,00,00,00, 00,00,00,00
  74. HKR, Responses, "FAX", 1, 03, 00, 00,00,00,00, 00,00,00,00
  75. HKR, Responses, "DATA", 1, 03, 00, 00,00,00,00, 00,00,00,00
  76. HKR, Responses, "VOICE", 1, 03, 00, 00,00,00,00, 00,00,00,00
  77. HKR, Responses, "RINGING", 1, 01, 00, 00,00,00,00, 00,00,00,00
  78. HKR, Responses, "DELAYED", 1, 03, 00, 00,00,00,00, 00,00,00,00
  79. HKR, Responses, "BLACKLISTED", 1, 03, 00, 00,00,00,00, 00,00,00,00
  80. HKR, Responses, "+FCERROR", 1, 03, 00, 00,00,00,00, 00,00,00,00
  81. HKR, Responses, "CONNECT", 1, 02, 00, 00,00,00,00, 00,00,00,00
  82. HKR, Responses, "CONNECT/ARQ", 1, 02, 02, 00,00,00,00, 00,00,00,00
  83. HKR, Responses, "CONNECT/REL", 1, 02, 02, 00,00,00,00, 00,00,00,00
  84. HKR, Responses, "CONNECT/MNP", 1, 02, 02, 00,00,00,00, 00,00,00,00
  85. HKR, Responses, "CONNECT/LAP-M", 1, 02, 02, 00,00,00,00, 00,00,00,00
  86. HKR, Responses, "CONNECT/V42BIS", 1, 02, 03, 00,00,00,00, 00,00,00,00
  87. HKR, Responses, "CONNECT/V42b", 1, 02, 03, 00,00,00,00, 00,00,00,00
  88. HKR, Responses, "CONNECT 300", 1, 02, 00, 2C,01,00,00, 00,00,00,00
  89. HKR, Responses, "CONNECT 300/ARQ", 1, 02, 02, 2C,01,00,00, 00,00,00,00
  90. HKR, Responses, "CONNECT 300/REL", 1, 02, 02, 2C,01,00,00, 00,00,00,00
  91. HKR, Responses, "CONNECT 300/MNP", 1, 02, 02, 2C,01,00,00, 00,00,00,00
  92. HKR, Responses, "CONNECT 300/LAP-M", 1, 02, 02, 2C,01,00,00, 00,00,00,00
  93. HKR, Responses, "CONNECT 300/V42BIS", 1, 02, 03, 2C,01,00,00, 00,00,00,00
  94. HKR, Responses, "CONNECT 300/V42b", 1, 02, 03, 2C,01,00,00, 00,00,00,00
  95. HKR, Responses, "CONNECT 600", 1, 02, 00, 58,02,00,00, 00,00,00,00
  96. HKR, Responses, "CONNECT 600/ARQ", 1, 02, 02, 58,02,00,00, 00,00,00,00
  97. HKR, Responses, "CONNECT 600/REL", 1, 02, 02, 58,02,00,00, 00,00,00,00
  98. HKR, Responses, "CONNECT 600/MNP", 1, 02, 02, 58,02,00,00, 00,00,00,00
  99. HKR, Responses, "CONNECT 600/LAP-M", 1, 02, 02, 58,02,00,00, 00,00,00,00
  100. HKR, Responses, "CONNECT 600/V42BIS", 1, 02, 03, 58,02,00,00, 00,00,00,00
  101. HKR, Responses, "CONNECT 600/V42b", 1, 02, 03, 58,02,00,00, 00,00,00,00
  102. HKR, Responses, "CONNECT 0600", 1, 02, 00, 58,02,00,00, 00,00,00,00
  103. HKR, Responses, "CONNECT 0600/ARQ", 1, 02, 02, 58,02,00,00, 00,00,00,00
  104. HKR, Responses, "CONNECT 0600/REL", 1, 02, 02, 58,02,00,00, 00,00,00,00
  105. HKR, Responses, "CONNECT 0600/MNP", 1, 02, 02, 58,02,00,00, 00,00,00,00
  106. HKR, Responses, "CONNECT 0600/LAP-M", 1, 02, 02, 58,02,00,00, 00,00,00,00
  107. HKR, Responses, "CONNECT 0600/V42BIS", 1, 02, 03, 58,02,00,00, 00,00,00,00
  108. HKR, Responses, "CONNECT 0600/V42b", 1, 02, 03, 58,02,00,00, 00,00,00,00
  109. HKR, Responses, "CONNECT 1200", 1, 02, 00, B0,04,00,00, 00,00,00,00
  110. HKR, Responses, "CONNECT 1200/ARQ", 1, 02, 02, B0,04,00,00, 00,00,00,00
  111. HKR, Responses, "CONNECT 1200/REL", 1, 02, 02, B0,04,00,00, 00,00,00,00
  112. HKR, Responses, "CONNECT 1200/MNP", 1, 02, 02, B0,04,00,00, 00,00,00,00
  113. HKR, Responses, "CONNECT 1200/LAP-M", 1, 02, 02, B0,04,00,00, 00,00,00,00
  114. HKR, Responses, "CONNECT 1200/V42BIS", 1, 02, 03, B0,04,00,00, 00,00,00,00
  115. HKR, Responses, "CONNECT 1200/V42b", 1, 02, 03, B0,04,00,00, 00,00,00,00
  116. HKR, Responses, "CONNECT 1200/75", 1, 02, 00, B0,04,00,00, 00,00,00,00
  117. HKR, Responses, "CONNECT 1200/75/ARQ", 1, 02, 02, B0,04,00,00, 00,00,00,00
  118. HKR, Responses, "CONNECT 1200/75/REL", 1, 02, 02, B0,04,00,00, 00,00,00,00
  119. HKR, Responses, "CONNECT 1200/75/MNP", 1, 02, 02, B0,04,00,00, 00,00,00,00
  120. HKR, Responses, "CONNECT 1200/75/LAP-M", 1, 02, 02, B0,04,00,00, 00,00,00,00
  121. HKR, Responses, "CONNECT 1200/75/V42BIS", 1, 02, 03, B0,04,00,00, 00,00,00,00
  122. HKR, Responses, "CONNECT 1200/75/V42b", 1, 02, 03, B0,04,00,00, 00,00,00,00
  123. HKR, Responses, "CONNECT 1200TX/75RX", 1, 02, 00, B0,04,00,00, 00,00,00,00
  124. HKR, Responses, "CONNECT 1200TX/75RX/ARQ", 1, 02, 02, B0,04,00,00, 00,00,00,00
  125. HKR, Responses, "CONNECT 1200TX/75RX/REL", 1, 02, 02, B0,04,00,00, 00,00,00,00
  126. HKR, Responses, "CONNECT 1200TX/75RX/MNP", 1, 02, 02, B0,04,00,00, 00,00,00,00
  127. HKR, Responses, "CONNECT 1200TX/75RX/LAP-M", 1, 02, 02, B0,04,00,00, 00,00,00,00
  128. HKR, Responses, "CONNECT 1200TX/75RX/V42BIS",1, 02, 03, B0,04,00,00, 00,00,00,00
  129. HKR, Responses, "CONNECT 1200TX/75RX/V42b", 1, 02, 03, B0,04,00,00, 00,00,00,00
  130. HKR, Responses, "CONNECT 75/1200", 1, 02, 00, B0,04,00,00, 00,00,00,00
  131. HKR, Responses, "CONNECT 75/1200/ARQ", 1, 02, 02, B0,04,00,00, 00,00,00,00
  132. HKR, Responses, "CONNECT 75/1200/REL", 1, 02, 02, B0,04,00,00, 00,00,00,00
  133. HKR, Responses, "CONNECT 75/1200/MNP", 1, 02, 02, B0,04,00,00, 00,00,00,00
  134. HKR, Responses, "CONNECT 75/1200/LAP-M", 1, 02, 02, B0,04,00,00, 00,00,00,00
  135. HKR, Responses, "CONNECT 75/1200/V42BIS", 1, 02, 03, B0,04,00,00, 00,00,00,00
  136. HKR, Responses, "CONNECT 75/1200/V42b", 1, 02, 03, B0,04,00,00, 00,00,00,00
  137. HKR, Responses, "CONNECT 75TX/1200RX", 1, 02, 00, B0,04,00,00, 00,00,00,00
  138. HKR, Responses, "CONNECT 75TX/1200RX/ARQ", 1, 02, 02, B0,04,00,00, 00,00,00,00
  139. HKR, Responses, "CONNECT 75TX/1200RX/REL", 1, 02, 02, B0,04,00,00, 00,00,00,00
  140. HKR, Responses, "CONNECT 75TX/1200RX/MNP", 1, 02, 02, B0,04,00,00, 00,00,00,00
  141. HKR, Responses, "CONNECT 75TX/1200RX/LAP-M", 1, 02, 02, B0,04,00,00, 00,00,00,00
  142. HKR, Responses, "CONNECT 75TX/1200RX/V42BIS",1, 02, 03, B0,04,00,00, 00,00,00,00
  143. HKR, Responses, "CONNECT 75TX/1200RX/V42b", 1, 02, 03, B0,04,00,00, 00,00,00,00
  144. HKR, Responses, "CONNECT 2400", 1, 02, 00, 60,09,00,00, 00,00,00,00
  145. HKR, Responses, "CONNECT 2400/ARQ", 1, 02, 02, 60,09,00,00, 00,00,00,00
  146. HKR, Responses, "CONNECT 2400/REL", 1, 02, 02, 60,09,00,00, 00,00,00,00
  147. HKR, Responses, "CONNECT 2400/MNP", 1, 02, 02, 60,09,00,00, 00,00,00,00
  148. HKR, Responses, "CONNECT 2400/LAP-M", 1, 02, 02, 60,09,00,00, 00,00,00,00
  149. HKR, Responses, "CONNECT 2400/V42BIS", 1, 02, 03, 60,09,00,00, 00,00,00,00
  150. HKR, Responses, "CONNECT 2400/V42b", 1, 02, 03, 60,09,00,00, 00,00,00,00
  151. HKR, Responses, "CONNECT 4800", 1, 02, 00, C0,12,00,00, 00,00,00,00
  152. HKR, Responses, "CONNECT 4800/ARQ", 1, 02, 02, C0,12,00,00, 00,00,00,00
  153. HKR, Responses, "CONNECT 4800/REL", 1, 02, 02, C0,12,00,00, 00,00,00,00
  154. HKR, Responses, "CONNECT 4800/MNP", 1, 02, 02, C0,12,00,00, 00,00,00,00
  155. HKR, Responses, "CONNECT 4800/LAP-M", 1, 02, 02, C0,12,00,00, 00,00,00,00
  156. HKR, Responses, "CONNECT 4800/V42BIS", 1, 02, 03, C0,12,00,00, 00,00,00,00
  157. HKR, Responses, "CONNECT 4800/V42b", 1, 02, 03, C0,12,00,00, 00,00,00,00
  158. HKR, Responses, "CONNECT 7200", 1, 02, 00, 20,1C,00,00, 00,00,00,00
  159. HKR, Responses, "CONNECT 7200/ARQ", 1, 02, 02, 20,1C,00,00, 00,00,00,00
  160. HKR, Responses, "CONNECT 7200/REL", 1, 02, 02, 20,1C,00,00, 00,00,00,00
  161. HKR, Responses, "CONNECT 7200/MNP", 1, 02, 02, 20,1C,00,00, 00,00,00,00
  162. HKR, Responses, "CONNECT 7200/LAP-M", 1, 02, 02, 20,1C,00,00, 00,00,00,00
  163. HKR, Responses, "CONNECT 7200/V42BIS", 1, 02, 03, 20,1C,00,00, 00,00,00,00
  164. HKR, Responses, "CONNECT 7200/V42b", 1, 02, 03, 20,1C,00,00, 00,00,00,00
  165. HKR, Responses, "CONNECT 9600", 1, 02, 00, 80,25,00,00, 00,00,00,00
  166. HKR, Responses, "CONNECT 9600/ARQ", 1, 02, 02, 80,25,00,00, 00,00,00,00
  167. HKR, Responses, "CONNECT 9600/REL", 1, 02, 02, 80,25,00,00, 00,00,00,00
  168. HKR, Responses, "CONNECT 9600/MNP", 1, 02, 02, 80,25,00,00, 00,00,00,00
  169. HKR, Responses, "CONNECT 9600/LAP-M", 1, 02, 02, 80,25,00,00, 00,00,00,00
  170. HKR, Responses, "CONNECT 9600/V42BIS", 1, 02, 03, 80,25,00,00, 00,00,00,00
  171. HKR, Responses, "CONNECT 9600/V42b", 1, 02, 03, 80,25,00,00, 00,00,00,00
  172. HKR, Responses, "CONNECT 12000", 1, 02, 00, E0,2E,00,00, 00,00,00,00
  173. HKR, Responses, "CONNECT 12000/ARQ", 1, 02, 02, E0,2E,00,00, 00,00,00,00
  174. HKR, Responses, "CONNECT 12000/REL", 1, 02, 02, E0,2E,00,00, 00,00,00,00
  175. HKR, Responses, "CONNECT 12000/MNP", 1, 02, 02, E0,2E,00,00, 00,00,00,00
  176. HKR, Responses, "CONNECT 12000/LAP-M", 1, 02, 02, E0,2E,00,00, 00,00,00,00
  177. HKR, Responses, "CONNECT 12000/V42BIS", 1, 02, 03, E0,2E,00,00, 00,00,00,00
  178. HKR, Responses, "CONNECT 12000/V42b", 1, 02, 03, E0,2E,00,00, 00,00,00,00
  179. HKR, Responses, "CONNECT 14400", 1, 02, 00, 40,38,00,00, 00,00,00,00
  180. HKR, Responses, "CONNECT 14400/ARQ", 1, 02, 02, 40,38,00,00, 00,00,00,00
  181. HKR, Responses, "CONNECT 14400/REL", 1, 02, 02, 40,38,00,00, 00,00,00,00
  182. HKR, Responses, "CONNECT 14400/MNP", 1, 02, 02, 40,38,00,00, 00,00,00,00
  183. HKR, Responses, "CONNECT 14400/LAP-M", 1, 02, 02, 40,38,00,00, 00,00,00,00
  184. HKR, Responses, "CONNECT 14400/V42BIS", 1, 02, 03, 40,38,00,00, 00,00,00,00
  185. HKR, Responses, "CONNECT 14400/V42b", 1, 02, 03, 40,38,00,00, 00,00,00,00
  186. HKR, Responses, "CONNECT 16800", 1, 02, 00, A0,41,00,00, 00,00,00,00
  187. HKR, Responses, "CONNECT 16800/ARQ", 1, 02, 02, A0,41,00,00, 00,00,00,00
  188. HKR, Responses, "CONNECT 16800/REL", 1, 02, 02, A0,41,00,00, 00,00,00,00
  189. HKR, Responses, "CONNECT 16800/MNP", 1, 02, 02, A0,41,00,00, 00,00,00,00
  190. HKR, Responses, "CONNECT 16800/LAP-M", 1, 02, 02, A0,41,00,00, 00,00,00,00
  191. HKR, Responses, "CONNECT 16800/V42BIS", 1, 02, 03, A0,41,00,00, 00,00,00,00
  192. HKR, Responses, "CONNECT 16800/V42b", 1, 02, 03, A0,41,00,00, 00,00,00,00
  193. HKR, Responses, "CONNECT 19200", 1, 02, 00, 00,4B,00,00, 00,00,00,00
  194. HKR, Responses, "CONNECT 19200/ARQ", 1, 02, 02, 00,4B,00,00, 00,00,00,00
  195. HKR, Responses, "CONNECT 19200/REL", 1, 02, 02, 00,4B,00,00, 00,00,00,00
  196. HKR, Responses, "CONNECT 19200/MNP", 1, 02, 02, 00,4B,00,00, 00,00,00,00
  197. HKR, Responses, "CONNECT 19200/LAP-M", 1, 02, 02, 00,4B,00,00, 00,00,00,00
  198. HKR, Responses, "CONNECT 19200/V42BIS", 1, 02, 03, 00,4B,00,00, 00,00,00,00
  199. HKR, Responses, "CONNECT 19200/V42b", 1, 02, 03, 00,4B,00,00, 00,00,00,00
  200. HKR, Responses, "CONNECT 21600", 1, 02, 00, 60,54,00,00, 00,00,00,00
  201. HKR, Responses, "CONNECT 21600/ARQ", 1, 02, 02, 60,54,00,00, 00,00,00,00
  202. HKR, Responses, "CONNECT 21600/REL", 1, 02, 02, 60,54,00,00, 00,00,00,00
  203. HKR, Responses, "CONNECT 21600/MNP", 1, 02, 02, 60,54,00,00, 00,00,00,00
  204. HKR, Responses, "CONNECT 21600/LAP-M", 1, 02, 02, 60,54,00,00, 00,00,00,00
  205. HKR, Responses, "CONNECT 21600/V42BIS", 1, 02, 03, 60,54,00,00, 00,00,00,00
  206. HKR, Responses, "CONNECT 21600/V42b", 1, 02, 03, 60,54,00,00, 00,00,00,00
  207. HKR, Responses, "CONNECT 24000", 1, 02, 00, C0,5D,00,00, 00,00,00,00
  208. HKR, Responses, "CONNECT 24000/ARQ", 1, 02, 02, C0,5D,00,00, 00,00,00,00
  209. HKR, Responses, "CONNECT 24000/REL", 1, 02, 02, C0,5D,00,00, 00,00,00,00
  210. HKR, Responses, "CONNECT 24000/MNP", 1, 02, 02, C0,5D,00,00, 00,00,00,00
  211. HKR, Responses, "CONNECT 24000/LAP-M", 1, 02, 02, C0,5D,00,00, 00,00,00,00
  212. HKR, Responses, "CONNECT 24000/V42BIS", 1, 02, 03, C0,5D,00,00, 00,00,00,00
  213. HKR, Responses, "CONNECT 24000/V42b", 1, 02, 03, C0,5D,00,00, 00,00,00,00
  214. HKR, Responses, "CONNECT 26400", 1, 02, 00, 20,67,00,00, 00,00,00,00
  215. HKR, Responses, "CONNECT 26400/ARQ", 1, 02, 02, 20,67,00,00, 00,00,00,00
  216. HKR, Responses, "CONNECT 26400/REL", 1, 02, 02, 20,67,00,00, 00,00,00,00
  217. HKR, Responses, "CONNECT 26400/MNP", 1, 02, 02, 20,67,00,00, 00,00,00,00
  218. HKR, Responses, "CONNECT 26400/LAP-M", 1, 02, 02, 20,67,00,00, 00,00,00,00
  219. HKR, Responses, "CONNECT 26400/V42BIS", 1, 02, 03, 20,67,00,00, 00,00,00,00
  220. HKR, Responses, "CONNECT 26400/V42b", 1, 02, 03, 20,67,00,00, 00,00,00,00
  221. HKR, Responses, "CONNECT 28800", 1, 02, 00, 80,70,00,00, 00,00,00,00
  222. HKR, Responses, "CONNECT 28800/ARQ", 1, 02, 02, 80,70,00,00, 00,00,00,00
  223. HKR, Responses, "CONNECT 28800/REL", 1, 02, 02, 80,70,00,00, 00,00,00,00
  224. HKR, Responses, "CONNECT 28800/MNP", 1, 02, 02, 80,70,00,00, 00,00,00,00
  225. HKR, Responses, "CONNECT 28800/LAP-M", 1, 02, 02, 80,70,00,00, 00,00,00,00
  226. HKR, Responses, "CONNECT 28800/V42BIS", 1, 02, 03, 80,70,00,00, 00,00,00,00
  227. HKR, Responses, "CONNECT 28800/V42b", 1, 02, 03, 80,70,00,00, 00,00,00,00
  228. HKR, Responses, "CONNECT 31200", 1, 02, 00, E0,79,00,00, 00,00,00,00
  229. HKR, Responses, "CONNECT 31200/ARQ", 1, 02, 02, E0,79,00,00, 00,00,00,00
  230. HKR, Responses, "CONNECT 31200/REL", 1, 02, 02, E0,79,00,00, 00,00,00,00
  231. HKR, Responses, "CONNECT 31200/MNP", 1, 02, 02, E0,79,00,00, 00,00,00,00
  232. HKR, Responses, "CONNECT 31200/LAP-M", 1, 02, 02, E0,79,00,00, 00,00,00,00
  233. HKR, Responses, "CONNECT 31200/V42BIS", 1, 02, 03, E0,79,00,00, 00,00,00,00
  234. HKR, Responses, "CONNECT 31200/V42b", 1, 02, 03, E0,79,00,00, 00,00,00,00
  235. HKR, Responses, "CONNECT 33600", 1, 02, 00, 40,83,00,00, 00,00,00,00
  236. HKR, Responses, "CONNECT 33600/ARQ", 1, 02, 02, 40,83,00,00, 00,00,00,00
  237. HKR, Responses, "CONNECT 33600/REL", 1, 02, 02, 40,83,00,00, 00,00,00,00
  238. HKR, Responses, "CONNECT 33600/MNP", 1, 02, 02, 40,83,00,00, 00,00,00,00
  239. HKR, Responses, "CONNECT 33600/LAP-M", 1, 02, 02, 40,83,00,00, 00,00,00,00
  240. HKR, Responses, "CONNECT 33600/V42BIS", 1, 02, 03, 40,83,00,00, 00,00,00,00
  241. HKR, Responses, "CONNECT 33600/V42b", 1, 02, 03, 40,83,00,00, 00,00,00,00
  242. HKR, Responses, "CONNECT 38400", 1, 02, 00, 00,96,00,00, 00,00,00,00
  243. HKR, Responses, "CONNECT 38400/ARQ", 1, 02, 02, 00,96,00,00, 00,00,00,00
  244. HKR, Responses, "CONNECT 38400/REL", 1, 02, 02, 00,96,00,00, 00,00,00,00
  245. HKR, Responses, "CONNECT 38400/MNP", 1, 02, 02, 00,96,00,00, 00,00,00,00
  246. HKR, Responses, "CONNECT 38400/LAP-M", 1, 02, 02, 00,96,00,00, 00,00,00,00
  247. HKR, Responses, "CONNECT 38400/V42BIS", 1, 02, 03, 00,96,00,00, 00,00,00,00
  248. HKR, Responses, "CONNECT 38400/V42b", 1, 02, 03, 00,96,00,00, 00,00,00,00
  249. HKR, Responses, "CONNECT 57600", 1, 02, 00, 00,E1,00,00, 00,00,00,00
  250. HKR, Responses, "CONNECT 57600/ARQ", 1, 02, 02, 00,E1,00,00, 00,00,00,00
  251. HKR, Responses, "CONNECT 57600/REL", 1, 02, 02, 00,E1,00,00, 00,00,00,00
  252. HKR, Responses, "CONNECT 57600/MNP", 1, 02, 02, 00,E1,00,00, 00,00,00,00
  253. HKR, Responses, "CONNECT 57600/LAP-M", 1, 02, 02, 00,E1,00,00, 00,00,00,00
  254. HKR, Responses, "CONNECT 57600/V42BIS", 1, 02, 03, 00,E1,00,00, 00,00,00,00
  255. HKR, Responses, "CONNECT 57600/V42b", 1, 02, 03, 00,E1,00,00, 00,00,00,00
  256. HKR, Responses, "CONNECT 115200", 1, 02, 00, 00,C2,01,00, 00,00,00,00
  257. HKR, Responses, "CONNECT 115200/ARQ", 1, 02, 02, 00,C2,01,00, 00,00,00,00
  258. HKR, Responses, "CONNECT 115200/REL", 1, 02, 02, 00,C2,01,00, 00,00,00,00
  259. HKR, Responses, "CONNECT 115200/MNP", 1, 02, 02, 00,C2,01,00, 00,00,00,00
  260. HKR, Responses, "CONNECT 115200/LAP-M", 1, 02, 02, 00,C2,01,00, 00,00,00,00
  261. HKR, Responses, "CONNECT 115200/V42BIS", 1, 02, 03, 00,C2,01,00, 00,00,00,00
  262. HKR, Responses, "CONNECT 115200/V42b", 1, 02, 03, 00,C2,01,00, 00,00,00,00

  264. HKR, Responses, "CONNECT 230400", 1, 02, 00, 00,84,03,00, 00,00,00,00
  265. HKR, Responses, "CONNECT 230400/ARQ", 1, 02, 02, 00,84,03,00, 00,00,00,00
  266. HKR, Responses, "CONNECT 230400/REL", 1, 02, 02, 00,84,03,00, 00,00,00,00
  267. HKR, Responses, "CONNECT 230400/MNP", 1, 02, 02, 00,84,03,00, 00,00,00,00
  268. HKR, Responses, "CONNECT 230400/LAP-M", 1, 02, 02, 00,84,03,00, 00,00,00,00
  269. HKR, Responses, "CONNECT 230400/V42BIS", 1, 02, 03, 00,84,03,00, 00,00,00,00
  270. HKR, Responses, "CONNECT 230400/V42b", 1, 02, 03, 00,84,03,00, 00,00,00,00
  271. HKR, Responses, "CARRIER 300", 1, 01, 00, 2C,01,00,00, 00,00,00,00
  272. HKR, Responses, "CARRIER 1200", 1, 01, 00, B0,04,00,00, 00,00,00,00
  273. HKR, Responses, "CARRIER 1200/75", 1, 01, 00, B0,04,00,00, 00,00,00,00
  274. HKR, Responses, "CARRIER 75/1200", 1, 01, 00, B0,04,00,00, 00,00,00,00
  275. HKR, Responses, "CARRIER 2400", 1, 01, 00, 60,09,00,00, 00,00,00,00
  276. HKR, Responses, "CARRIER 4800", 1, 01, 00, C0,12,00,00, 00,00,00,00
  277. HKR, Responses, "CARRIER 7200", 1, 01, 00, 20,1C,00,00, 00,00,00,00
  278. HKR, Responses, "CARRIER 9600", 1, 01, 00, 80,25,00,00, 00,00,00,00
  279. HKR, Responses, "CARRIER 12000", 1, 01, 00, E0,2E,00,00, 00,00,00,00
  280. HKR, Responses, "CARRIER 14400", 1, 01, 00, 40,38,00,00, 00,00,00,00
  281. HKR, Responses, "CARRIER 16800", 1, 01, 00, A0,41,00,00, 00,00,00,00
  282. HKR, Responses, "CARRIER 19200", 1, 01, 00, 00,4B,00,00, 00,00,00,00
  283. HKR, Responses, "CARRIER 21600", 1, 01, 00, 60,54,00,00, 00,00,00,00
  284. HKR, Responses, "CARRIER 24000", 1, 01, 00, C0,5D,00,00, 00,00,00,00
  285. HKR, Responses, "CARRIER 26400", 1, 01, 00, 20,67,00,00, 00,00,00,00
  286. HKR, Responses, "CARRIER 28800", 1, 01, 00, 80,70,00,00, 00,00,00,00
  287. HKR, Responses, "CARRIER 31200", 1, 01, 00, E0,79,00,00, 00,00,00,00
  288. HKR, Responses, "CARRIER 33600", 1, 01, 00, 40,83,00,00, 00,00,00,00

  290. HKR, Responses, "COMPRESSION: CLASS 5", 1, 01, 03, 00,00,00,00, 00,00,00,00
  291. HKR, Responses, "COMPRESSION: MNP5", 1, 01, 03, 00,00,00,00, 00,00,00,00
  292. HKR, Responses, "COMPRESSION: V.42BIS", 1, 01, 03, 00,00,00,00, 00,00,00,00
  293. HKR, Responses, "COMPRESSION: V.42 BIS", 1, 01, 03, 00,00,00,00, 00,00,00,00
  294. HKR, Responses, "COMPRESSION: V.42bis", 1, 01, 03, 00,00,00,00, 00,00,00,00
  295. HKR, Responses, "COMPRESSION: V.42 bis", 1, 01, 03, 00,00,00,00, 00,00,00,00
  296. HKR, Responses, "COMPRESSION: ADC", 1, 01, 01, 00,00,00,00, 00,00,00,00
  297. HKR, Responses, "COMPRESSION: NONE", 1, 01, 00, 00,00,00,00, 00,00,00,00

  299. HKR, Responses, "PROTOCOL: NONE", 1, 01, 00, 00,00,00,00, 00,00,00,00
  300. HKR, Responses, "PROTOCOL: ERROR-CONTROL/LAPB", 1, 01, 02, 00,00,00,00, 00,00,00,00
  301. HKR, Responses, "PROTOCOL: ERROR-CONTROL/LAPB/HDX", 1, 01, 02, 00,00,00,00, 00,00,00,00
  302. HKR, Responses, "PROTOCOL: ERROR-CONTROL/LAPB/AFT", 1, 01, 02, 00,00,00,00, 00,00,00,00
  303. HKR, Responses, "PROTOCOL: X.25/LAPB", 1, 01, 02, 00,00,00,00, 00,00,00,00
  304. HKR, Responses, "PROTOCOL: X.25/LAPB/HDX", 1, 01, 02, 00,00,00,00, 00,00,00,00
  305. HKR, Responses, "PROTOCOL: X.25/LAPB/AFT", 1, 01, 02, 00,00,00,00, 00,00,00,00
  306. HKR, Responses, "PROTOCOL: LAPM", 1, 01, 02, 00,00,00,00, 00,00,00,00
  307. HKR, Responses, "PROTOCOL: LAP-M", 1, 01, 02, 00,00,00,00, 00,00,00,00
  308. HKR, Responses, "PROTOCOL: LAPM/HDX", 1, 01, 02, 00,00,00,00, 00,00,00,00
  309. HKR, Responses, "PROTOCOL: LAP-M/HDX", 1, 01, 02, 00,00,00,00, 00,00,00,00
  310. HKR, Responses, "PROTOCOL: LAPM/AFT", 1, 01, 02, 00,00,00,00, 00,00,00,00
  311. HKR, Responses, "PROTOCOL: LAP-M/AFT", 1, 01, 02, 00,00,00,00, 00,00,00,00
  312. HKR, Responses, "PROTOCOL: ALT", 1, 01, 02, 00,00,00,00, 00,00,00,00
  313. HKR, Responses, "PROTOCOL: ALT-CELLULAR", 1, 01, 0A, 00,00,00,00, 00,00,00,00
  314. HKR, Responses, "PROTOCOL: MNP", 1, 01, 02, 00,00,00,00, 00,00,00,00
  315. HKR, Responses, "PROTOCOL: MNP2", 1, 01, 02, 00,00,00,00, 00,00,00,00
  316. HKR, Responses, "PROTOCOL: MNP3", 1, 01, 02, 00,00,00,00, 00,00,00,00
  317. HKR, Responses, "PROTOCOL: MNP4", 1, 01, 02, 00,00,00,00, 00,00,00,00
  318. HKR, Responses, "PROTOCOL: RLP", 1, 01, 02, 00,00,00,00, 00,00,00,00

  320. HKR, Responses, "AUTOSTREAM: LEVEL 1", 1, 01, 00, 00,00,00,00, 00,00,00,00
  321. HKR, Responses, "AUTOSTREAM: LEVEL 2", 1, 01, 00, 00,00,00,00, 00,00,00,00
  322. HKR, Responses, "AUTOSTREAM: LEVEL 3", 1, 01, 00, 00,00,00,00, 00,00,00,00
复制代码
回复 支持 反对

使用道具 举报

卖身葬自己了
发表于 2007-7-29 15:04:49 | 显示全部楼层
这种好贴为什么没没人顶啊！！！！:D
回复 支持 反对

使用道具 举报

felix0194
发表于 2007-7-29 15:13:42 | 显示全部楼层
顶啊
要不以后我就找不到了
回复 支持 反对

使用道具 举报

chenjie1213
发表于 2007-7-29 17:03:56 | 显示全部楼层
先顶你:)
回复 支持 反对

使用道具 举报

caolanyue
发表于 2007-10-18 22:14:14 | 显示全部楼层
不 顶 不 行
回复 支持 反对

使用道具 举报

heige
发表于 2007-10-18 22:37:33 | 显示全部楼层
能不能步骤详细点 设IP拨号号码 MPM的使用等等
回复 支持 反对

使用道具 举报

李扬帆
发表于 2008-3-15 00:48:18 | 显示全部楼层
这个也是研究了很久
回复 支持 反对

使用道具 举报

typhonii
发表于 2008-3-15 12:02:01 | 显示全部楼层
下了班就用手机上网的人顶起~~
回复 支持 反对

使用道具 举报

raincong
发表于 2008-3-28 00:37:19 | 显示全部楼层
好帖，留下。
回复 支持 反对

使用道具 举报

下一页 »
123下一页
返回列表 发新帖
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 注册会员 微信登录

本版积分规则

小黑屋|Archiver|手机版|爱技术 ( 沪ICP备08115260号-3 )

GMT+8, 2025-6-26 10:24

Powered by Discuz! X3.4 Licensed

Copyright © 2001-2020, Tencent Cloud.

快速回复 返回顶部 返回列表
